Polypropylene Film Capacitors (KNB1580 RFI Class X2)

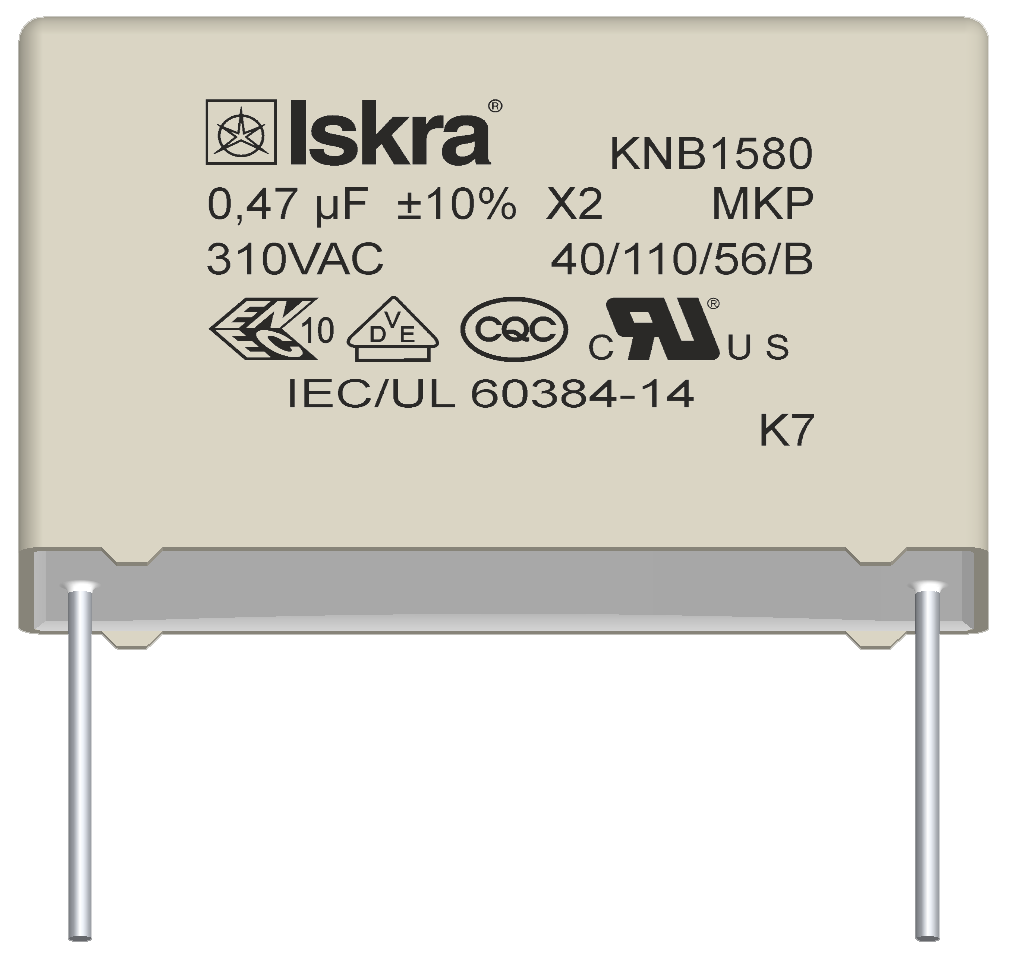

Class X capacitors are suitable for applications where there is no danger of electrical shock in case of breakdown. Metallized polypropylene film capacitors type KNB1580 Class X2 with rated voltage 305 VAC or 310VAC have a very stable capacitance over long operational life. They can withstand peak pulse voltage in service up to 2.5 kV.



The capacitor type KNB1580 includes all advantages of a CD version. They can be used in parallel or serial connection with the supply mains.



Read more about RFI capacitor for harsh environment conditions.

B2B shop
  • KNB1580 – Tinned copper wire
  • KNB1582 – Insulated stranded wire 0.5 mm2. Terminal ends on request.
  • KNB1583 – Insulated solid wire Ø0.8mm

  • Construction: polypropylene film, metallized
  • Rated voltage: 305 V AC, 310 V AC
  • Capacitance tolerance: ± 20 % for C ≤ 0.1 µF, ±10 % for C %mygt% 0.1 µF
  • Climate category: 40/110/56 acc. to IEC 60068-1
  • Passive flammability: B acc. to IEC 60384-14
  • Temperature range: -40° to +110°C
  • Test voltage: 2200 V DC, 1s for C ≤ 1 µF; 1900 V DC, 1s for 1 µF %mylt% C ≤ 2.2 µF; 1600 V DC, 2s for C %mygt% 2.2 µF
  • Max. pulse rise time at 438 VDC tested according to IEC 60384-14:
  1. 550V/μs for PCM = 7.5mm
  2. 500V/μs for PCM = 10mm
  3. 400V/μs for PCM = 15mm and C ≤ 0.022 µF
  4. 250V/μs for PCM = 15mm and C %mygt% 0.022 µF
  5. 150V/μs for PCM = 22.5mm
  6. 100V/μs for PCM = 27.5mm
  7. 100V/μs for PCM = 37.5mm
  • Dissipation factor: 0.001 max. at 1 kHz
  • Soldering: IEC 60068-2-20, max. 2 s
  • Resistance to soldering heat: IEC 60068-2-20, 260°C ±5°C, 10 s ±1 s
  • Self inductance: approx. 10nH/cm of capacitor length and terminals
  • Complies to: IEC 60384-14, UL 60384-14, CSA 60384-14
  • Halogen free (HF) version on request

Typical applications are:

  • RFI suppression in audio and video devices
  • chargers
  • measurement instruments
  • electrical hand tools
  • electrical home appliances and machines
  • capacitive divider power supplies in power meter
  • -emergency lighting
  • -thermostat
