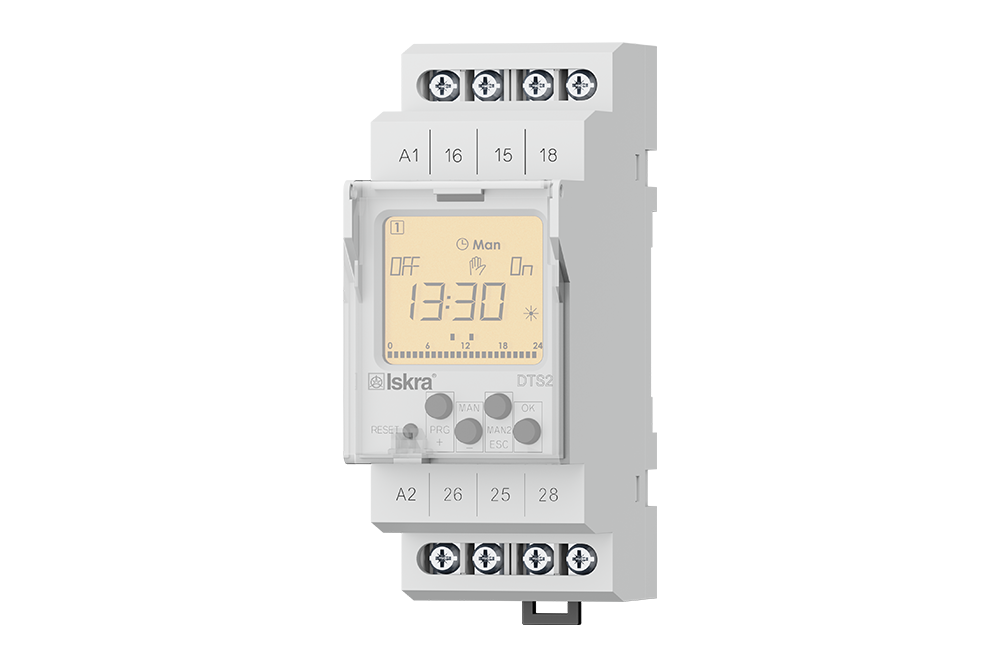

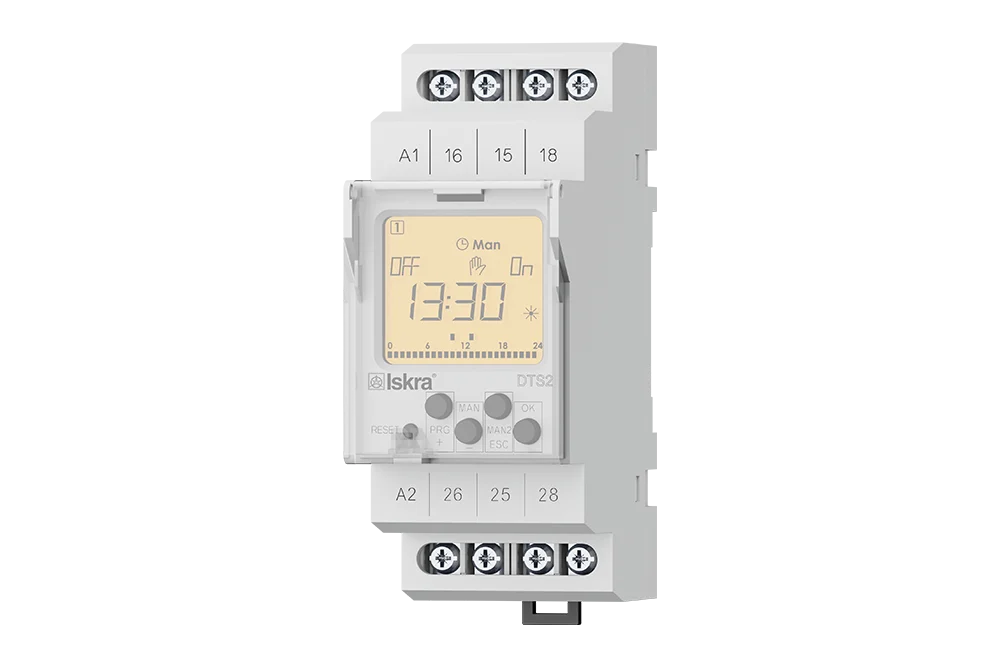

Digital time switch clocks DTS1 & DTS2
Digital time switch clocks DTS1 & DTS2
Digital time switch clocks DTS 1 and DTS 2 are used to control various appliances in real time: daily, weekly, monthly and annual mode.
- Switching: according the program (AUTO)/constantly manually, manually to next program change/random (CUBE)
- ”Holiday program” option to choose an interval when the device doesn´t switch according to the standard program, but will be block during that time
- Automatic conversion summer / winter time
- Sealable cover of front panel, easy controlling via 4 buttons
- 100 memory places, clear LCD display, min. interval 1 s
- Voltage range: AC 230 V or AC/DC 12-240 V
- Cyclic output
- Pulse output
- DTS 1: one channel version, 2-MODULE, DIN rail mounting, terminals
- DTS 2: two channel version, 2-MODULE, an individual program can be run on each channel
